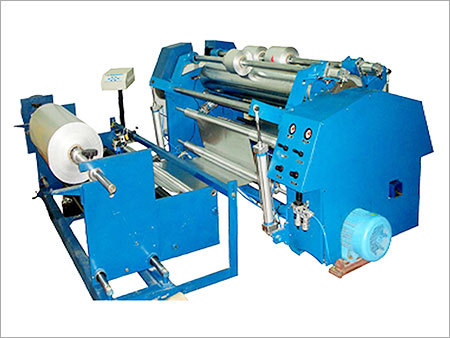

Standard Surface Slitter

Standard Surface Slitter
Standard Surface Slitter
Product Code : SS 03
Brand Name : ANANTHA
Product Description

The Anantha Lakshmi Industries is located in Hyderabad, Telangana, India, widely known as the best Exporter, Supplier and Manufacturer of Standard Surface Slitter. All the products are made by using the top grade quality components, which are procured from the reliable vendors. We have a team of experienced professionals, all the products are processed and tested under their supervision. You can avail the offer of Standard Surface Slitter at very reasonable price.

Salient features:

  • A strong and sturdy frame forms the base of our machines.
  • The side frames are carefully and methodically machined and secured together.
  • Unique combination of MS plate with heavy cast iron base maintain long and vibration free performance.
  • Unwind unit : A Trolley type unwind unit consisting of load-cell powder brake assembly for controlling web tension through out the reel run.
  • Draw unit : This unit consists of ground finished chrome plated steel roller given by AC motor to isolate the web tension between the unwind rewind units.
  • A pneumatically operated rubber roll nip is provided in the machine.
  • Web tension at both rewind units is controlled by a mechanical clutch assembly through a timer pulley and belt assembly.
  • Pneumatically operated rewind shafts for easy and quick unloading of slitted rolls.
  • A razor blade holder with 1 mm pitch groove roller IS provided for web slitting & trim cutting.
  • A highly efficient centrifugal blower with square type pipe is provided in the machine for trim collection.

 Technical Features:

  • Model Surface winding duplex type
  • Available Widths 600, 800, 1000, 1200, 1500
  • Substrates LDPE, HMHDPE, PET, BOPP, Paper, Foil & Multi layers
  • Slitting Method Razor blades & circular knives
  • Parent Roll Dia. 1000mm Max
  • Rewind Roll Dia. 600mm
  • Type of winding Duplex
  • Line Speed 100 mts./min.
  • Trim Removal By 0.5 to 1 HP air blower
  • Tension By mechanical clutch
  • Tension control Pneumatic powder brake at unwind & digital drive at rewind
